Wire rope isolator: 'polycal'

DEFINITION
series MP16
  • All metal multidirectional anti-vibration/shock mounts
  • Exceptional reliability and long life
  • High damping
  • No aging
  • Corrosion resistant
  • Unequalled temperature range:- 180°C to 300°C (- 290°F to 570°F)
  • Great adaptability/versatility

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

MP16

Cable:
stainless steel
Retainer bars:
aluminium alloy
Inserts:
stainless steel


Model

height

h (mm)

width

u (mm)

width

v (mm)

weight

(kg)

-315
130
138
174
2,2
-375
149
151
195
2,3
-415
164
160
204
2,4
-515
194
183
219
2,7
-615
224
205
237
3,0
Interfaces

fixtures holes D

Bar 1
1 through hole ø13,5 mm (option:Insert M16
Bar 2
2 through holes ø13,5 mm
M
P
1
6

Serie: MP16

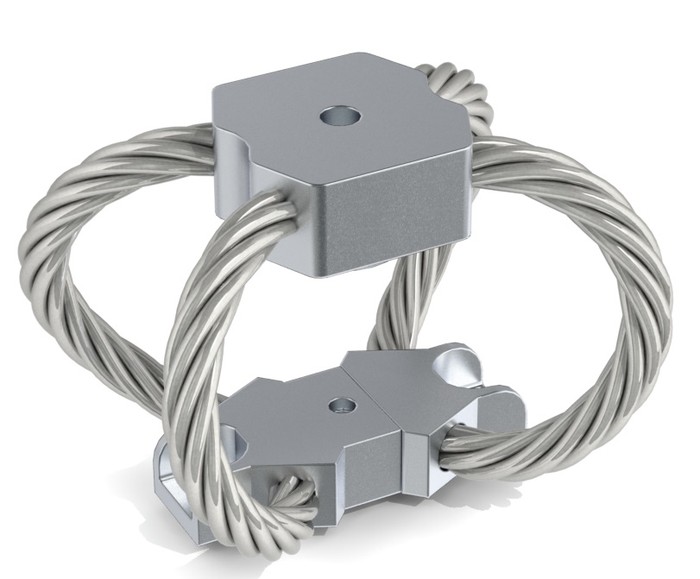

'Polycal' mount from the MP16 series

-
3
1
5

Model: -315

height: 130mm
width: 138mm
weight: 2,2kg

Wire rope isolator: 'polycal'

PERFORMANCE DATA
series MP16

Compression and tension

MP16 Series
Model
-315
-375
-415
-515
-615
1. Max Static
F daN
168
137
120
94,7
72,4
d mm
9,8
14,1
17,1
22,2
27,1
2. Max Shock
F daN
504
411
361
284
217
d mm
59
77
89
116
143
3. Max Vibration
2a mm
6,5
8,6
9,9
12,8
15,8
f Hz
5,2
4,4
4,0
3,4
3,0
1. Max Static
F daN
168
137
120
94,7
72,4
d mm
9,6
11,6
12,9
15,5
18,9
2. Max Shock
F daN
1952
1455
1240
911
691
d mm
47
53
57
64
78
3. Max Vibration
2a mm
5,2
5,8
6,3
7,2
8,6
f Hz
6,5
6,0
5,7
5,2
4,7

Compression/roll 45° - Tension/roll 45°

MP16 Series
Model
-315
-375
-415
-515
-615
1. Max Static
F daN
126
102
90,4
71,0
54,3
d mm
14,0
20,0
23,9
33,4
43,9
2. Max Shock
F daN
315
253
221
171
130
d mm
88
116
134
174
215
3. Max Vibration
2a mm
9,7
12,9
14,8
19,2
23,7
f Hz
4,4
3,7
3,4
2,9
2,6
1. Max Static
F daN
126
102
90,4
71,0
54,3
d mm
14,0
18,1
20,1
24,2
29,4
2. Max Shock
F daN
956
707
601
439
332
d mm
54
60
65
74
89
3. Max Vibration
2a mm
6,0
6,7
7,2
8,2
9,9
f Hz
5,9
5,4
5,2
4,7
4,3

Shear or Roll

MP16 Series
Model
-315
-375
-415
-515
-615
1. Max Static
F daN
84,0
68,5
60,2
47,4
36,2
d mm
19,3
26,9
32,0
44,0
57,0
2. Max Shock
F daN
475
346
291
209
157
d mm
63
76
85
104
127
3. Max Vibration
2a mm
7,0
8,4
9,4
11,5
14,1
f Hz
5,0
4,4
4,2
3,8
3,4
  1. Max static load (F) with corresponding deflection (d)
  2. Max shock load (F) with corresponding deflection (d)
  3. Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
