Wire rope isolator: 'polycal'

DEFINITION
series MP9
  • All metal multidirectional anti-vibration/shock mounts
  • Exceptional reliability and long life
  • High damping
  • No aging
  • Corrosion resistant
  • Unequalled temperature range:- 180°C to 300°C (- 290°F to 570°F)
  • Great adaptability/versatility

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

MP9

Cable:
stainless steel
Retainer bars:
aluminium alloy
Inserts:
stainless steel


Model

height

h (mm)

width

u (mm)

width

v (mm)

weight

(kg)

-125
55
65
79
0,20
-180
73
77
90
0,23
-230
86
85
102
0,26
-280
106
97
114
0,29
Interfaces

fixtures holes D

Bar 1
1 through hole ø7 mm (option:Insert M10)
Bar 2
2 through holes ø7 mm
M
P
9

Serie: MP9

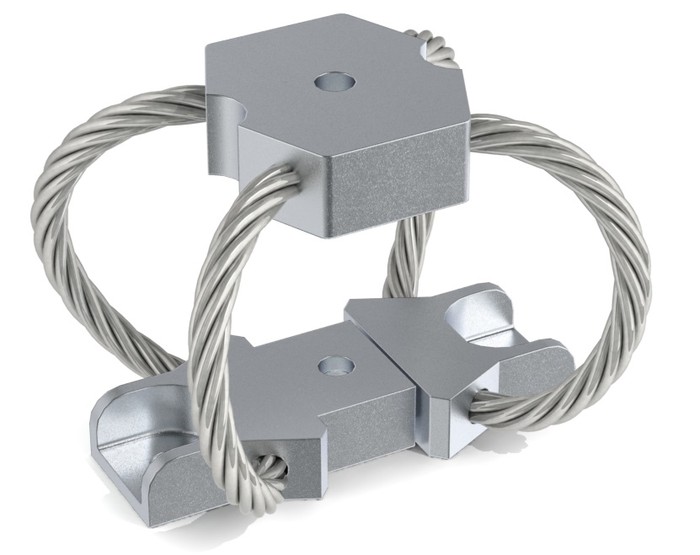

'Polycal' mount from the MP9 series

-
1
2
5

Model: -125

height: 55mm
width: 65mm
weight: 0,20kg

Wire rope isolator: 'polycal'

PERFORMANCE DATA
series MP9

Compression and tension

MP9 Series
Model
-125
-180
-230
-280
1. Max Static
F daN
20,0
13,1
9,9
7,3
d mm
4,0
7,3
9,1
11,5
2. Max Shock
F daN
60,1
39,2
29,8
21,9
d mm
23
39
50
68
3. Max Vibration
2a mm
2,5
4,3
5,6
7,6
f Hz
8,1
5,8
5,0
4,2
1. Max Static
F daN
20,0
13,1
9,9
7,3
d mm
3,5
5,1
6,2
7,7
2. Max Shock
F daN
215
123
90,3
62,3
d mm
16
20
24
29
3. Max Vibration
2a mm
1,8
2,3
2,7
3,2
f Hz
10,9
9,0
8,1
7,3

Compression/roll 45° - Tension/roll 45°

MP9 Series
Model
-125
-180
-230
-280
1. Max Static
F daN
15,0
9,8
7,5
5,5
d mm
5,7
11,1
15,5
21,2
2. Max Shock
F daN
37,1
23,6
17,8
12,9
d mm
34
58
76
103
3. Max Vibration
2a mm
3,8
6,5
8,4
11,4
f Hz
6,9
4,9
4,2
3,4
1. Max Static
F daN
15,0
9,8
7,5
5,5
d mm
5,4
7,9
9,8
12,0
2. Max Shock
F daN
104
59,3
43,2
29,7
d mm
18
23
28
33
3. Max Vibration
2a mm
2,0
2,6
3,1
3,7
f Hz
9,9
8,2
7,4
6,7

Shear or Roll

MP9 Series
Model
-125
-180
-230
-280
1. Max Static
F daN
10,0
6,5
5,0
3,6
d mm
7,7
14,6
20,1
29,0
2. Max Shock
F daN
52,0
28,2
20,3
13,6
d mm
22
34
43
55
3. Max Vibration
2a mm
2,5
3,8
4,8
6,1
f Hz
8,1
6,6
5,9
5,2
  1. Max static load (F) with corresponding deflection (d)
  2. Max shock load (F) with corresponding deflection (d)
  3. Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
