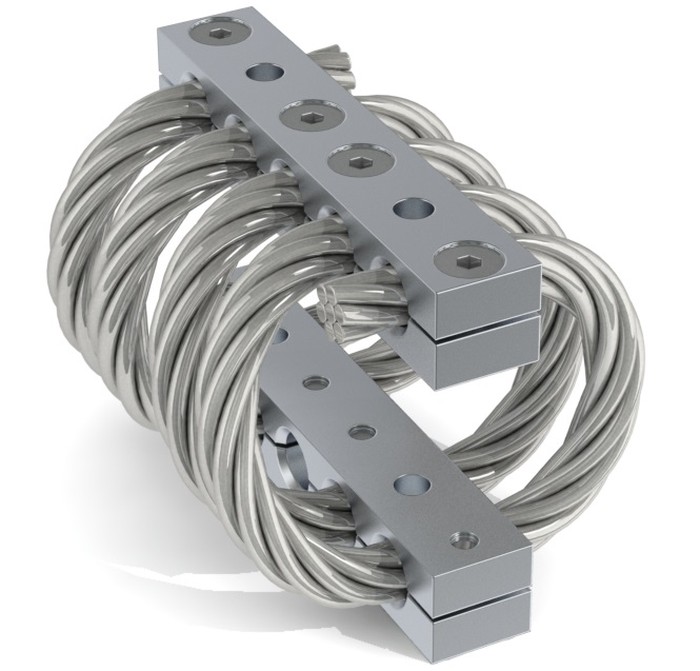

Wire rope isolator

DEFINITION
series HH17

All metal multidirectional anti-vibration/shock mounts
Exceptional reliability and long life
High damping
No aging
Corrosion resistant
Unequalled temperature range : - 180°C to 300°C (-290°F to 570°F)
Great adaptability/versatility

Specials on request

(material size and number of loops, etc.)

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

HH17

Cable:
stainless steel
galvanized available: HHG
Retainer bars:
aluminium alloy/
SurTec
Screws:
alloy steel/zinc plate
Inserts:
stainless steel

All stainless steel: HHSS

Other materials on request

Model

height

H (mm)

width

W (mm)

weight

(kg)

-15

133

140

4,1

-17

152

165

4,7

-20

159

178

4,9

-25

175

195

5,4

-30

190

210

5,7

-40

216

235

6,4

Interfaces

fixtures holes D

Bar 2

Bar 1

2 through holes ø13,5mm

2 through holes ø13,5mm countersunk 90°

2 inserts M12

2 through holes ø13,5mm

TM2

not standard

2 through holes ø13,5mm countersunk 90°

TCM

CM2

not standard

2 inserts M12

TIM

CIM

IM2

Serie: HH17

'Half-Helical' mount from the HH17 series

Model: -15

height: 133mm
width: 140mm
weight: 4,1kg
loops: serie standard is 04 loops

Interface: CIM

2 through holes ø13,5mm countersunk 90° in bar 1,
2 inserts M12 in bar 2

Wire rope isolator

PERFORMANCE DATA
series HH17

Compression and tension

HH17 Series

Model

-15

-17

-20

-25

-30

-40

1. Max Static

F daN

809

579

500

416

358

285

d mm

8,5

13,8

16,4

18,6

22,3

2. Max Shock

F daN

2427

1738

1502

1248

1074

855

d mm

102

126

3. Max Vibration

2a mm

5,6

7,5

8,2

9,8

11,3

13,9

f Hz

6,6

5,7

5,4

4,9

4,6

4,2

1. Max Static

F daN

809

579

500

416

358

285

d mm

5,6

8,2

9,6

11,3

12,8

15,2

2. Max Shock

F daN

6838

5165

4697

3864

3279

2553

d mm

3. Max Vibration

2a mm

2,3

3,5

4,3

5,6

6,6

f Hz

10,2

8,3

7,6

6,6

6,1

Compression/roll 45° - Tension/roll 45°

HH17 Series

Model

-15

-17

-20

-25

-30

-40

1. Max Static

F daN

606

434

375

312

268

213

d mm

11,1

13,9

18,1

21,7

25,3

25,4

2. Max Shock

F daN

1531

1109

969

804

689

546

d mm

102

112

133

153

189

3. Max Vibration

2a mm

8,5

11,3

12,3

14,7

16,9

20,8

f Hz

4,3

3,7

3,4

3,2

1. Max Static

F daN

606

434

375

312

268

213

d mm

9,9

11,2

14,7

16,3

18,6

2. Max Shock

F daN

3359

2547

2325

1911

1620

1260

d mm

3. Max Vibration

2a mm

2,7

5,8

6,4

7,5

f Hz

8,2

6,7

6,1

5,7

5,4

4,9

Shear or Roll

HH17 Series

Model

-15

-17

-20

-25

-30

-40

1. Max Static

F daN

404

289

250

208

179

142

d mm

11,6

16,8

17,9

23,1

25,5

32,8

2. Max Shock

F daN

1847

1360

1233

992

828

629

d mm

105

3. Max Vibration

2a mm

4,5

6,3

7,2

8,5

9,7

11,6

f Hz

2,8

2,4

2,2

1,9

1,8

Max static load (F) with corresponding deflection (d)
Max shock load (F) with corresponding deflection (d)
Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air	AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces	GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine	GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others	GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
