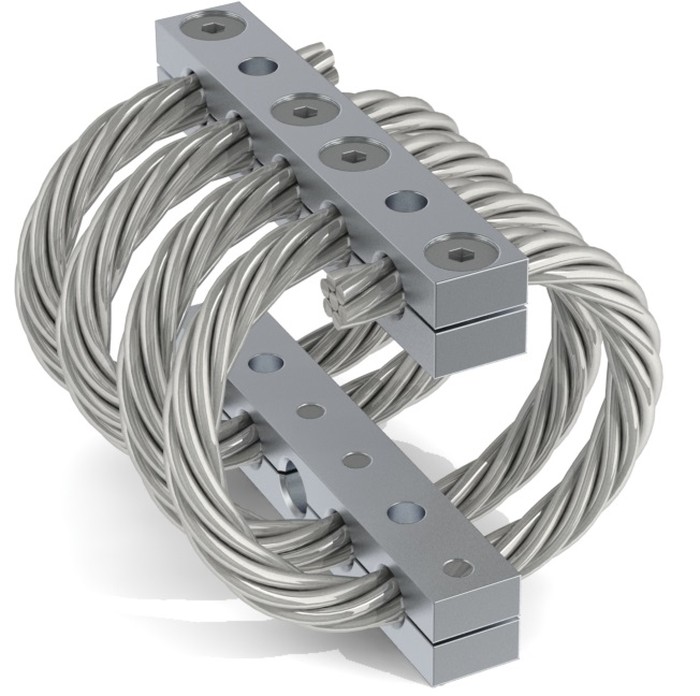

Wire rope isolator

DEFINITION
series HH18
  • All metal multidirectional anti-vibration/shock mounts
  • Exceptional reliability and long life
  • High damping
  • No aging
  • Corrosion resistant
  • Unequalled temperature range : - 180°C to 300°C (-290°F to 570°F)
  • Great adaptability/versatility

Specials on request

(material size and number of loops, etc.)

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

HH18

Cable:
stainless steel
galvanized available: HHG
Retainer bars:
aluminium alloy/
SurTec
Screws:
alloy steel/zinc plate
Inserts:
stainless steel

All stainless steel: HHSS

Other materials on request
Model

height

H (mm)

width

W (mm)

weight

(kg)

-12
133
172
6,3
-15
147
187
6,8
-17
163
205
7,4
-20
182
225
8,1
-30
203
249
8,9
-40
228
276
9,8
-50
256
308
10,9
Interfaces

fixtures holes D

Bar 2
Bar 1
2 through holes ø17,5mm
2 through holes ø17,5mm countersunk 90°
2 inserts M16
2 through holes ø17,5mm
TM2
not standard
not standard
2 through holes ø17,5mm countersunk 90°
TCM
CM2
not standard
2 inserts M16
TIM
CIM
IM2
H
H
1
8

Serie: HH18

'Half-Helical' mount from the HH18 series

-
1
2

Model: -12

height: 133mm
width: 172mm
weight: 6,3kg
loops: serie standard is 04 loops

C
I
M

Interface: CIM

2 through holes ø17,5mm countersunk 90° in bar 1,
2 inserts M16 in bar 2

1
ISO 9001 ROHS Compliant

Wire rope isolator

PERFORMANCE DATA
series HH18

Compression and tension

HH18 Series
Model
-12
-15
-17
-20
-30
-40
-50
1. Max Static
F daN
908
783
658
552
454
373
302
d mm
8,1
10,5
13,1
16,3
19,8
23,9
28,6
2. Max Shock
F daN
2724
2351
1976
1658
1362
1119
907
d mm
44
56
71
88
107
129
154
3. Max Vibration
2a mm
4,8
6,2
7,8
9,7
11,8
14,3
17
f Hz
6,8
6
5,4
4,9
4,4
4
3,7
1. Max Static
F daN
908
783
658
552
454
373
302
d mm
8,1
9,9
11,9
14
16,6
19,4
22,8
2. Max Shock
F daN
12447
9904
7891
6272
5007
3981
3172
d mm
46
52
60
67
78
88
102
3. Max Vibration
2a mm
5,1
5,8
6,6
7,5
8,6
9,8
11,3
f Hz
7,5
7
6,4
6
5,6
5,2
4,8

Compression/roll 45° - Tension/roll 45°

HH18 Series
Model
-12
-15
-17
-20
-30
-40
-50
1. Max Static
F daN
681
587
494
414
340
279
226
d mm
12,5
16,6
21,3
22,7
28,1
34,7
41,9
2. Max Shock
F daN
1875
1599
1333
1108
906
740
598
d mm
66
85
106
132
160
194
232
3. Max Vibration
2a mm
7,3
9,4
11,7
14,6
17,7
21,4
25,5
f Hz
5,1
4,5
4
3,6
3,3
3
2,8
1. Max Static
F daN
681
587
494
414
340
279
226
d mm
9
11,1
14,3
17,8
19,9
25,3
28,7
2. Max Shock
F daN
6293
4988
3963
3141
2503
1987
1581
d mm
53
60
68
77
89
101
117
3. Max Vibration
2a mm
5,9
6,6
7,6
8,5
9,8
11,2
12,9
f Hz
6,1
5,6
5,2
4,9
4,5
4,2
3,9

Shear or Roll

HH18 Series
Model
-12
-15
-17
-20
-30
-40
-50
1. Max Static
F daN
454
391
329
276
227
186
151
d mm
9,8
12,4
16
20,4
26,5
33,8
38,4
2. Max Shock
F daN
3540
2727
2111
1638
1281
1000
785
d mm
55
65
78
92
109
128
150
3. Max Vibration
2a mm
6,1
7,2
8,6
10,2
12
14,1
16,6
f Hz
2,1
2
1,8
1,7
1,6
1,5
1,4
  1. Max static load (F) with corresponding deflection (d)
  2. Max shock load (F) with corresponding deflection (d)
  3. Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
Aug. 24, 2021
