Wire rope isolator

DEFINITION
series HH19

All metal multidirectional anti-vibration/shock mounts
Exceptional reliability and long life
High damping
No aging
Corrosion resistant
Unequalled temperature range : - 180°C to 300°C (-290°F to 570°F)
Great adaptability/versatility

Specials on request

(material size and number of loops, etc.)

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

HH19

Cable:
stainless steel
galvanized available: HHG
Retainer bars:
aluminium alloy/
SurTec
Screws:
alloy steel/zinc plate
Inserts:
stainless steel

All stainless steel: HHSS

Other materials on request

Model

height

H (mm)

width

W (mm)

weight

(kg)

-10

180

216

10,8

-12

216

242

12,2

-15

235

262

Interfaces

fixtures holes D

Bar 2

Bar 1

2 through holes ø20mm

2 through holes ø20mm countersunk 90°

2 inserts M18

2 through holes ø20mm

TM2

not standard

2 through holes ø20mm countersunk 90°

TCM

CM2

not standard

2 inserts M18

TIM

CIM

IM2

Serie: HH19

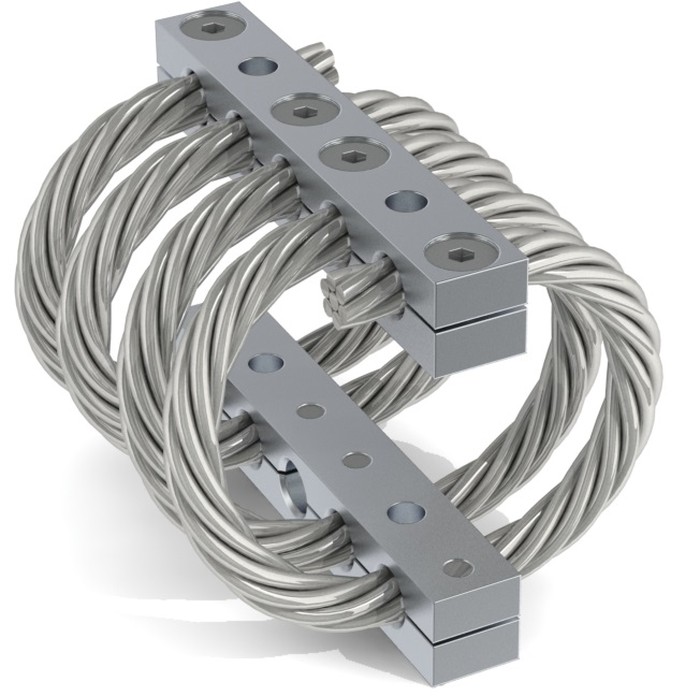

'Half-Helical' mount from the HH19 series

Model: -10

height: 180mm
width: 216mm
weight: 10,8kg
loops: serie standard is 04 loops

Interface: CIM

2 through holes ø20mm countersunk 90° in bar 1,
2 inserts M18 in bar 2

Wire rope isolator

PERFORMANCE DATA
series HH19

Compression and tension

HH19 Series

Model

-10

-12

-15

1. Max Static

F daN

1047

859

734

d mm

12,6

18,6

21,8

2. Max Shock

F daN

3141

2578

2202

d mm

100

117

3. Max Vibration

2a mm

7,5

11,1

f Hz

5,5

4,6

4,3

1. Max Static

F daN

1047

859

734

d mm

13,7

15,7

2. Max Shock

F daN

12054

8407

7073

d mm

3. Max Vibration

2a mm

5,9

6,4

7,2

f Hz

6,8

6,3

5,9

Compression/roll 45° - Tension/roll 45°

HH19 Series

Model

-10

-12

-15

1. Max Static

F daN

785

644

550

d mm

17,5

23,5

27,9

2. Max Shock

F daN

2105

1677

1429

d mm

102

151

176

3. Max Vibration

2a mm

11,3

16,6

19,4

f Hz

4,1

3,5

3,2

1. Max Static

F daN

785

644

550

d mm

14,3

17,3

19,3

2. Max Shock

F daN

6041

4173

3507

d mm

3. Max Vibration

2a mm

6,8

7,3

8,3

f Hz

5,5

5,1

4,8

Shear or Roll

HH19 Series

Model

-10

-12

-15

1. Max Static

F daN

523

429

367

d mm

14,9

23,3

29,4

2. Max Shock

F daN

3370

2222

1831

d mm

105

3. Max Vibration

2a mm

10,1

11,7

f Hz

1,9

1,8

1,7

Max static load (F) with corresponding deflection (d)
Max shock load (F) with corresponding deflection (d)
Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air	AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces	GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine	GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others	GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
