Wire rope isolator

DEFINITION
series HH20

All metal multidirectional anti-vibration/shock mounts
Exceptional reliability and long life
High damping
No aging
Corrosion resistant
Unequalled temperature range : - 180°C to 300°C (-290°F to 570°F)
Great adaptability/versatility

Specials on request

(material size and number of loops, etc.)

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

HH20

Cable:
stainless steel
galvanized available: HHG
Retainer bars:
aluminium alloy/
SurTec
Screws:
alloy steel/zinc plate
Inserts:
stainless steel.

All stainless steel: HHSS

Other materials on request

Model

height

H (mm)

width

W (mm)

weight

(kg)

-10

180

210

-12

216

248

-15

235

270

Interfaces

fixtures holes D

Bar 2

Bar 1

2 through holes ø20mm

2 through holes ø20mm countersunk 90°

2 inserts M18

2 through holes ø20mm

TM2

not standard

2 through holes ø20mm countersunk 90°

TCM

CM2

not standard

2 inserts M18

TIM

CIM

IM2

Serie: HH20

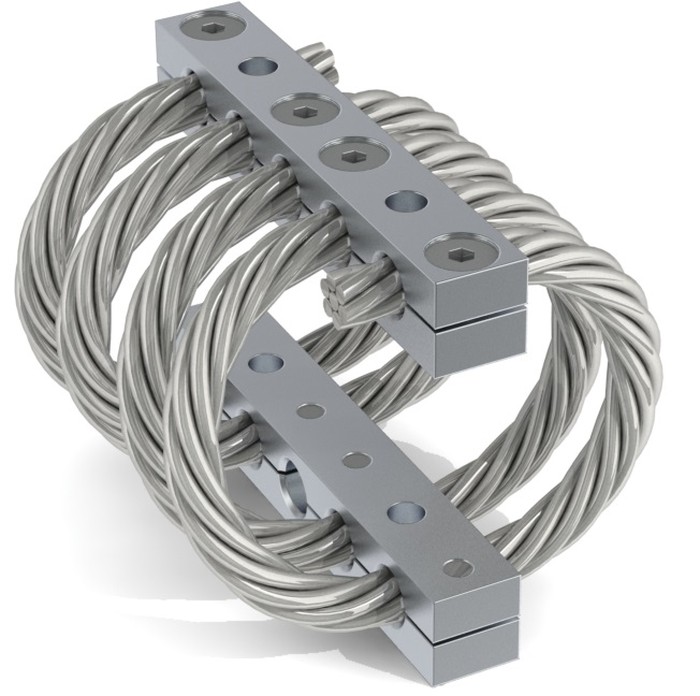

'Half-Helical' mount from the HH20 series

Model: -10

height: 180mm
width: 210mm
weight: 12kg
loops: serie standard is 04 loops

Interface: CIM

2 through holes ø20mm countersunk 90° in bar 1,
2 inserts M18 in bar 2

Wire rope isolator

PERFORMANCE DATA
series HH20

Compression and tension

HH20 Series

Model

-10

-12

-15

1. Max Static

F daN

1510

1077

904

d mm

12,6

18,6

21,8

2. Max Shock

F daN

4531

3231

2712

d mm

100

117

3. Max Vibration

2a mm

7,5

11,1

f Hz

5,6

4,6

4,2

1. Max Static

F daN

1510

1077

904

d mm

10,1

16,3

2. Max Shock

F daN

15955

10761

8981

d mm

3. Max Vibration

2a mm

5,1

6,7

7,7

f Hz

7,2

6,2

5,7

Compression/roll 45° - Tension/roll 45°

HH20 Series

Model

-10

-12

-15

1. Max Static

F daN

1132

807

678

d mm

18,4

23,1

27,2

2. Max Shock

F daN

2991

2111

1770

d mm

102

151

176

3. Max Vibration

2a mm

11,3

16,6

19,4

f Hz

4,1

3,5

3,2

1. Max Static

F daN

1132

807

678

d mm

18,5

21,2

2. Max Shock

F daN

7958

5348

4462

d mm

3. Max Vibration

2a mm

5,8

7,6

8,8

f Hz

5,8

4,7

Shear or Roll

HH20 Series

Model

-10

-12

-15

1. Max Static

F daN

755

538

452

d mm

14,7

24,3

27,6

2. Max Shock

F daN

4477

2847

2330

d mm

109

3. Max Vibration

2a mm

7,4

10,3

f Hz

1,8

1,7

Max static load (F) with corresponding deflection (d)
Max shock load (F) with corresponding deflection (d)
Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air	AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces	GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine	GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others	GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
