Wire rope isolators: 'Helical'

DEFINITION
series CB1700

All metal multidirectional anti-vibration/shock mounts
Exceptional reliability and long life
High damping
No aging
Corrosion resistant
Unequalled temperature range : -180°C to +300°C / -290F to 570 F
Great adaptability/versatility

Specials on request

(material size and number of loops, etc.)

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

CB1700

Cable:
stainless steel
galvanized available: CBG
Retainer bars:
aluminium alloy/
SurTec
Screws:
alloy steel/ zinc plate
Inserts:
stainless steel

All stainless steel: CBSS

Other materials on request

Model

height

H (mm)

width

W (mm)

weight

(kg)

-15

133

140

7,7

-17

152

165

8,8

-20

159

178

9,3

-30

190

210

10,9

-40

216

235

12,2

Interfaces

fixtures holes D

Bar 2

Bar 1

4 through holes ø13,5mm

4 through holes ø13,5mm counter-sunk 90°

4 inserts M12

4 through holes ø13,5mm

no suffix

not standard

4 through holes ø13,5mm counter-sunk 90°

CM2

not standard

4 inserts M12

CIM

IM2

Serie: CB1700

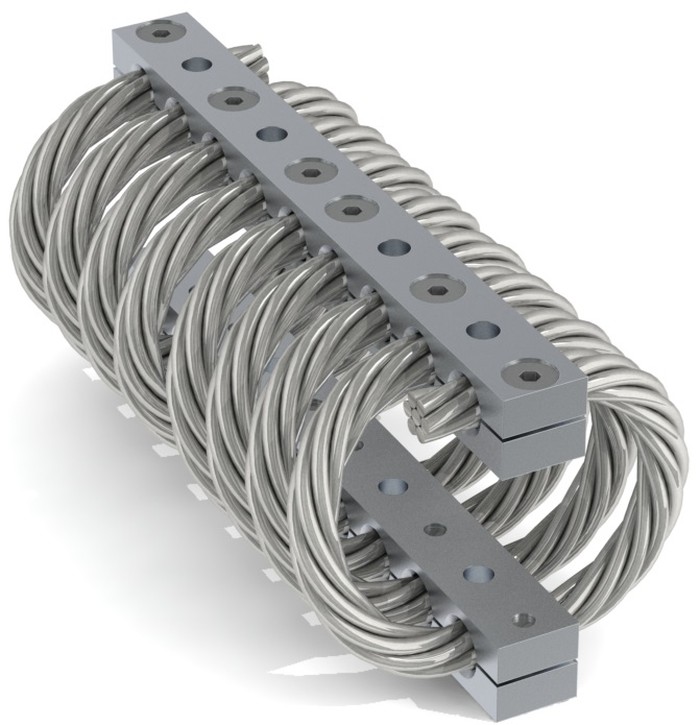

'Helical' mount from the CB1700 series

Model: -15

height: 133mm
width: 140mm
weight: 7,7kg
loops: serie standard is 08 loops

Interface: CIM

4 through holes ø13,5mm counter-sunk 90° in bar 1,
4 inserts M12 in bar 2

Wire rope isolators: 'Helical'

PERFORMANCE DATA
series CB1700

Compression and tension

CB1700 Series

Model

-15

-17

-20

-30

-40

1. Max Static

F daN

1618

1158

1001

716

570

d mm

8,5

13,8

18,6

22,3

2. Max Shock

F daN

4855

3476

3005

2148

1710

d mm

102

126

3. Max Vibration

2a mm

5,6

7,5

8,2

11,3

13,9

f Hz

6,6

5,7

5,4

4,6

4,2

1. Max Static

F daN

1618

1158

1001

716

570

d mm

5,6

8,2

9,6

12,8

15,2

2. Max Shock

F daN

13676

10331

9395

6559

5107

d mm

3. Max Vibration

2a mm

2,3

3,5

4,3

5,6

6,6

f Hz

10,2

8,3

7,6

6,6

6,1

Compression/roll 45° - Tension/roll 45°

CB1700 Series

Model

-15

-17

-20

-30

-40

1. Max Static

F daN

1213

869

751

537

427

d mm

11,1

13,9

18,1

25,3

25,4

2. Max Shock

F daN

3063

2219

1939

1379

1093

d mm

102

112

153

189

3. Max Vibration

2a mm

8,5

11,3

12,3

16,9

20,8

f Hz

4,3

3,4

3,2

1. Max Static

F daN

1213

869

751

537

427

d mm

9,9

11,2

16,3

18,6

2. Max Shock

F daN

6719

5095

4650

3241

2520

d mm

3. Max Vibration

2a mm

2,7

6,4

7,5

f Hz

8,2

6,7

6,1

5,4

4,9

Shear or Roll

CB1700 Series

Model

-15

-17

-20

-30

-40

1. Max Static

F daN

809

579

500

358

285

d mm

11,6

16,8

17,9

25,5

32,8

2. Max Shock

F daN

3695

2720

2467

1656

1259

d mm

105

3. Max Vibration

2a mm

4,5

6,3

7,2

9,7

11,6

f Hz

2,8

2,4

2,2

1,9

1,8

Max static load (F) with corresponding deflection (d)
Max shock load (F) with corresponding deflection (d)
Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air	AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces	GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine	GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others	GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
