Wire rope isolators: 'Helical'

DEFINITION
series CB2300

All metal multidirectional anti-vibration/shock mounts
Exceptional reliability and long life
High damping
No aging
Corrosion resistant
Unequalled temperature range : -180°C to +300°C / -290F to 570 F
Great adaptability/versatility

Specials on request

(material size and number of loops, etc.)

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

CB2300

Cable:
stainless steel
galvanized available: CBG
Retainer bars:
aluminium alloy/
SurTec
Screws:
alloy steel/ zinc plate
Inserts:
stainless steel

All stainless steel: CBSS

Other materials on request

Model

height

H (mm)

width

W (mm)

weight

(kg)

-12

262

330

80,4

-15

289

360

87,8

-17

320

395

96,4

-20

356

434

106,1

-30

397

480

117,3

Interfaces

fixtures holes D

Bar 2

Bar 1

4 through holes ø39mm

4 through holes ø39mm counter-sunk 60°

4 inserts M36

4 through holes ø39mm

no suffix

not standard

4 through holes ø39mm counter-sunk 60°

CM2

not standard

4 inserts M36

CIM

IM2

Serie: CB2300

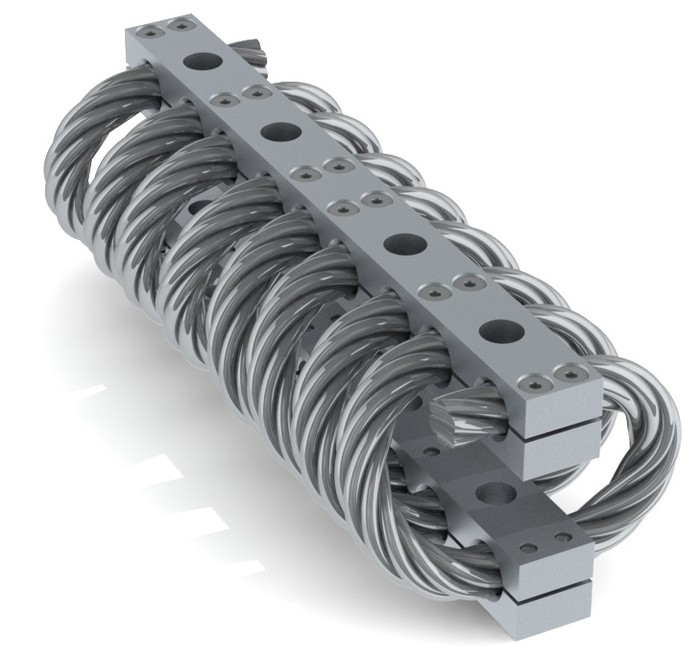

'Helical' mount from the CB2300 series

Model: -12

height: 262mm
width: 330mm
weight: 80,4kg
loops: serie standard is 08 loops

Interface: CIM

4 through holes ø39mm counter-sunk 60° in bar 1,
4 inserts M36 in bar 2

Wire rope isolators: 'Helical'

PERFORMANCE DATA
series CB2300

Compression and tension

CB2300 Series

Model

-12

-15

-17

-20

-30

1. Max Static

F daN

8225

6915

5725

4737

3867

d mm

16,9

21,4

26,6

32,5

39,4

2. Max Shock

F daN

24677

20745

17177

14211

11601

d mm

116

144

176

213

3. Max Vibration

2a mm

10,1

12,8

15,8

19,4

23,5

f Hz

4,7

4,2

3,8

3,4

3,2

1. Max Static

F daN

8225

6915

5725

4737

3867

d mm

15,3

18,5

22,2

26,3

31,1

2. Max Shock

F daN

97972

78513

62846

50293

40207

d mm

104

119

139

3. Max Vibration

2a mm

8,5

9,8

11,5

13,2

15,3

f Hz

5,7

5,2

4,8

4,4

4,1

Compression/roll 45° - Tension/roll 45°

CB2300 Series

Model

-12

-15

-17

-20

-30

1. Max Static

F daN

6169

5186

4294

3552

2900

d mm

29,9

37,8

47,3

2. Max Shock

F daN

16632

13871

11418

9391

7637

d mm

137

174

216

264

319

3. Max Vibration

2a mm

15,2

19,2

23,8

29,1

35,2

f Hz

3,6

3,2

2,8

2,6

2,3

1. Max Static

F daN

6169

5186

4294

3552

2900

d mm

18,2

23,4

26,4

33,9

38,6

2. Max Shock

F daN

49195

39322

31415

25091

20035

d mm

102

119

136

159

3. Max Vibration

2a mm

9,7

11,2

13,1

15,1

17,5

f Hz

4,6

4,2

3,9

3,6

3,3

Shear or Roll

CB2300 Series

Model

-12

-15

-17

-20

-30

1. Max Static

F daN

4112

3457

2862

2368

1933

d mm

21,8

28,3

31,9

41,2

53,6

2. Max Shock

F daN

27974

21623

16795

13107

10259

d mm

100

121

146

173

206

3. Max Vibration

2a mm

11,1

13,4

16,1

19,1

22,7

f Hz

1,6

1,5

1,4

1,3

1,2

Max static load (F) with corresponding deflection (d)
Max shock load (F) with corresponding deflection (d)
Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air	AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces	GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine	GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others	GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
