Wire rope isolator

DEFINITION
series HH23

All metal multidirectional anti-vibration/shock mounts
Exceptional reliability and long life
High damping
No aging
Corrosion resistant
Unequalled temperature range : - 180°C to 300°C (-290°F to 570°F)
Great adaptability/versatility

Specials on request

(material size and number of loops, etc.)

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

HH23

Cable:
stainless steel
galvanized available: HHG
Retainer bars:
aluminium alloy/
SurTec
Screws:
alloy steel/zinc plate
Inserts:
stainless steel

All stainless steel: HHSS

Other materials on request

Model

height

H (mm)

width

W (mm)

weight

(kg)

-12

262

330

42,1

-15

289

360

45,9

-17

320

395

50,1

-20

356

434

-30

397

480

60,6

Interfaces

fixtures holes D

Bar 2

Bar 1

2 through holes ø39mm

2 through holes ø39mm counter-sunk 60°

2 inserts M36

2 through holes ø39mm

TM2

not standard

2 through holes ø39mm counter-sunk 60°

TCM

CM2

not standard

2 inserts M36

TIM

CIM

IM2

Serie: HH23

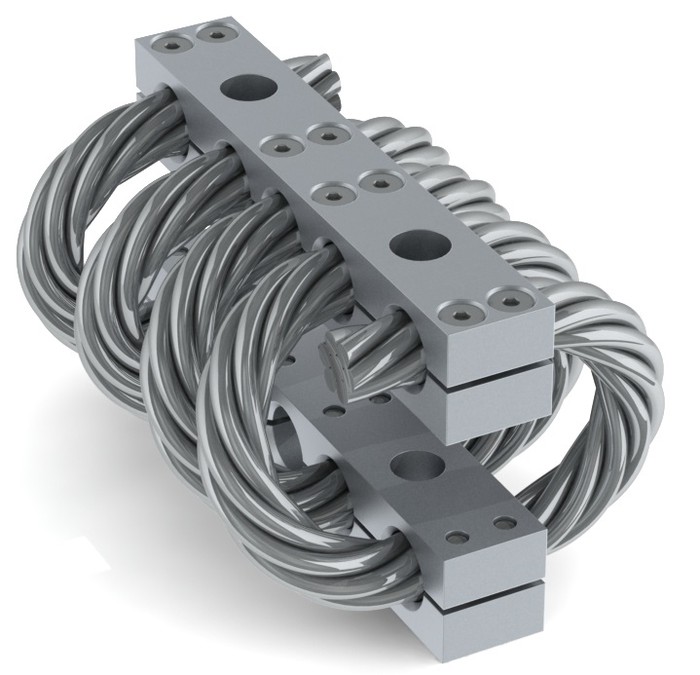

'Half-Helical' mount from the HH23 series

Model: -12

height: 262mm
width: 330mm
weight: 42,1kg
loops: serie standard is 04 loops

Interface: CIM

2 through holes ø39mm counter-sunk 60° in bar 1,
2 inserts M36 in bar 2

Wire rope isolator

PERFORMANCE DATA
series HH23

Compression and tension

HH23 Series

Model

-12

-15

-17

-20

-30

1. Max Static

F daN

4112

3457

2862

2368

1933

d mm

16,9

21,4

26,6

32,5

39,4

2. Max Shock

F daN

12338

10372

8588

7105

5800

d mm

116

144

176

213

3. Max Vibration

2a mm

10,1

12,8

15,8

19,4

23,5

f Hz

4,7

4,2

3,8

3,4

3,2

1. Max Static

F daN

4112

3457

2862

2368

1933

d mm

15,3

18,5

22,2

26,3

31,1

2. Max Shock

F daN

48986

39256

31423

25146

20103

d mm

104

119

139

3. Max Vibration

2a mm

8,5

9,8

11,5

13,2

15,3

f Hz

5,7

5,2

4,8

4,4

4,1

Compression/roll 45° - Tension/roll 45°

HH23 Series

Model

-12

-15

-17

-20

-30

1. Max Static

F daN

3084

2593

2147

1776

1450

d mm

29,9

37,8

47,3

2. Max Shock

F daN

8316

6935

5709

4695

3818

d mm

137

174

216

264

319

3. Max Vibration

2a mm

15,2

19,2

23,8

29,1

35,2

f Hz

3,6

3,2

2,8

2,6

2,3

1. Max Static

F daN

3084

2593

2147

1776

1450

d mm

18,2

23,4

26,4

33,9

38,6

2. Max Shock

F daN

24597

19661

15707

12546

10017

d mm

102

119

136

159

3. Max Vibration

2a mm

9,7

11,2

13,1

15,1

17,5

f Hz

4,6

4,2

3,9

3,6

3,3

Shear or Roll

HH23 Series

Model

-12

-15

-17

-20

-30

1. Max Static

F daN

2056

1728

1431

1184

966

d mm

21,8

28,3

31,9

41,2

53,6

2. Max Shock

F daN

13987

10811

8397

6553

5129

d mm

100

121

146

173

206

3. Max Vibration

2a mm

11,1

13,4

16,1

19,1

22,7

f Hz

1,6

1,5

1,4

1,3

1,2

Max static load (F) with corresponding deflection (d)
Max shock load (F) with corresponding deflection (d)
Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air	AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces	GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine	GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others	GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
