Wire rope isolator

DEFINITION
series AX3
  • All metal multidirectional anti-vibration/shock mounts.
  • Exceptional reliability and long life.
  • High damping.
  • No ageing.
  • Corrosion resistant.
  • Unequalled temperature range : - 180°C + 300°C.
  • Great adaptability/versatility.

Specials on request

(material size and number of loops, etc.).

Dimensions are in inches. For reference only

Series

Materials and finishes
(meets RoHS requirements)

AX3

Cable:
stainless steel
Interfaces:
stainless steel
Model

height

h (in)

width

w (in)

weight

(lbs)

-10R
0.35
0.35
None
-10S
0.35
0.35
None
-10M
0.35
0.35
None
-15R
0.47
0.55
None
-15S
0.47
0.55
None
-15M
0.47
0.55
None
-20R
0.55
0.71
None
-20S
0.55
0.71
None
-20M
0.55
0.71
None
-25M
0.67
0.91
None
-25R
0.67
0.91
None
-25S
0.67
0.91
None
Interfaces

fixtures holes D

Bar 2
Bar 1
A
X
3

Serie: AX3

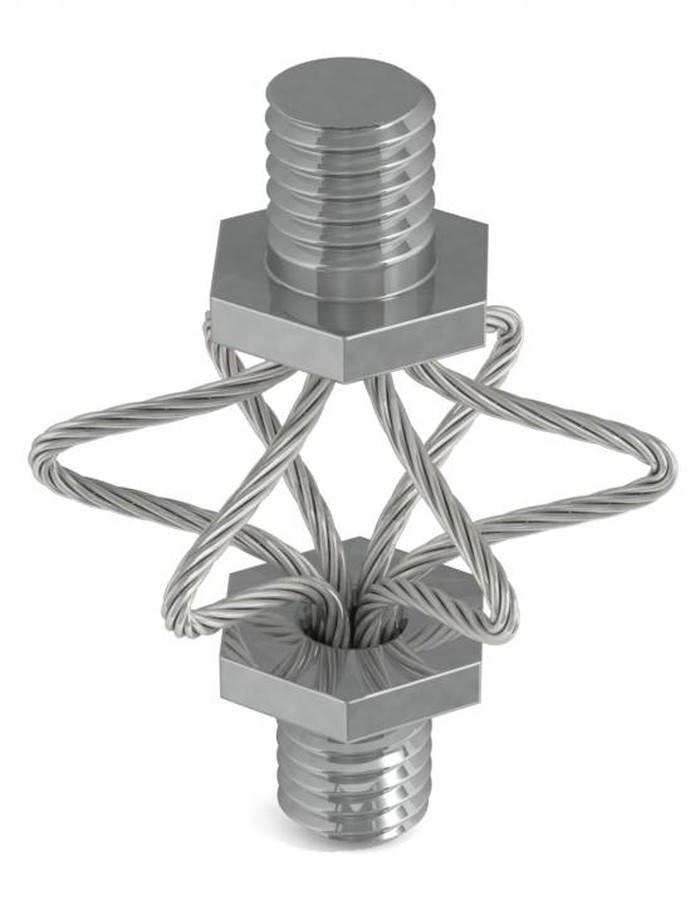

'Axycal' mount from the AX3 series

-
1
0
R

Model: -10R

height: 0.35in
width: 0.35in
weight: Nonelbs

Wire rope isolator

PERFORMANCE DATA
series AX3

Compression and tension

AX3 Series
Model
-10R
-10S
-10M
-15R
-15S
-15M
-20R
-20S
-20M
-25M
-25R
-25S
1. Max Static
F lbf
3.3
2.2
2.7
2.1
1.4
1.7
1.5
0.97
1.2
0.90
1.1
0.74
d in
0.03
0.03
0.03
0.05
0.05
0.05
0.07
0.07
0.07
0.09
0.09
0.09
2. Max Shock
F lbf
9.8
6.6
8.0
6.2
4.2
5.1
4.4
2.9
3.6
2.7
3.3
2.2
d in
0.16
0.16
0.16
0.26
0.26
0.26
0.36
0.36
0.36
0.46
0.46
0.46
3. Max Vibration
2a in
0.02
0.02
0.02
0.03
0.03
0.03
0.04
0.04
0.04
0.05
0.05
0.05
f Hz
15.8
16.6
16.3
11.7
12.5
12.2
9.6
10.4
10.1
8.8
8.3
9.1
1. Max Static
F lbf
3.3
2.2
2.7
2.1
1.4
1.7
1.5
0.97
1.2
0.90
1.1
0.74
d in
0.03
0.03
0.03
0.04
0.04
0.04
0.05
0.06
0.05
0.07
0.06
0.07
2. Max Shock
F lbf
38
30
33
22
17
19
15
11
13
9.4
11
8.3
d in
0.12
0.16
0.14
0.17
0.22
0.20
0.21
0.29
0.25
0.31
0.26
0.35
3. Max Vibration
2a in
0.01
0.02
0.02
0.02
0.02
0.02
0.02
0.03
0.03
0.03
0.03
0.04
f Hz
22.1
20.3
21.1
18.2
16.6
17.3
15.8
14.4
15.1
13.5
14.2
12.9

Compression/roll 45° - Tension/roll 45°

AX3 Series
Model
-10R
-10S
-10M
-15R
-15S
-15M
-20R
-20S
-20M
-25M
-25R
-25S
1. Max Static
F lbf
2.5
1.6
2.0
1.6
1.0
1.3
1.1
0.74
0.90
0.67
0.83
0.56
d in
0.04
0.04
0.04
0.07
0.07
0.07
0.09
0.09
0.09
0.12
0.12
0.12
2. Max Shock
F lbf
6.1
4.2
5.1
3.8
2.6
3.1
2.7
1.8
2.2
1.7
2.0
1.4
d in
0.23
0.23
0.23
0.39
0.39
0.39
0.54
0.54
0.54
0.69
0.69
0.69
3. Max Vibration
2a in
0.03
0.03
0.03
0.04
0.04
0.04
0.06
0.06
0.06
0.08
0.08
0.08
f Hz
13.5
14.0
13.8
10.0
10.6
10.4
8.3
8.9
8.6
7.5
7.2
7.8
1. Max Static
F lbf
2.5
1.6
2.0
1.6
1.0
1.3
1.1
0.74
0.90
0.67
0.83
0.56
d in
0.04
0.04
0.04
0.06
0.07
0.06
0.08
0.09
0.08
0.11
0.10
0.11
2. Max Shock
F lbf
18
15
16
10
8.3
9.3
7.0
5.5
6.2
4.6
5.2
4.1
d in
0.14
0.18
0.16
0.19
0.26
0.22
0.24
0.33
0.29
0.35
0.30
0.40
3. Max Vibration
2a in
0.02
0.02
0.02
0.02
0.03
0.02
0.03
0.04
0.03
0.04
0.03
0.04
f Hz
20.1
18.3
19.2
16.6
15.1
15.8
14.4
13.1
13.7
12.3
13.0
11.8

Shear or Roll

AX3 Series
Model
-10R
-10S
-10M
-15R
-15S
-15M
-20R
-20S
-20M
-25M
-25R
-25S
1. Max Static
F lbf
1.6
1.1
1.3
1.0
0.70
0.83
0.74
0.49
0.58
0.45
0.56
0.36
d in
0.05
0.05
0.05
0.09
0.09
0.09
0.13
0.13
0.13
0.16
0.16
0.16
2. Max Shock
F lbf
12
7.9
9.5
5.4
3.8
4.5
3.3
2.3
2.8
1.9
2.3
1.6
d in
0.16
0.19
0.18
0.25
0.29
0.27
0.33
0.39
0.36
0.45
0.42
0.48
3. Max Vibration
2a in
0.02
0.02
0.02
0.03
0.03
0.03
0.04
0.04
0.04
0.05
0.05
0.05
f Hz
17.2
16.2
16.8
13.6
12.8
13.2
11.6
10.8
11.2
9.9
10.2
9.6
  1. Max static load (F) with corresponding deflection (d)
  2. Max shock load (F) with corresponding deflection (d)
  3. Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
