Wire rope isolator

DEFINITION
series AX5
  • All meta mutlidirectionnal anto-vibration/shock mounts.
  • Exceptional reliability and long life.
  • High damping
  • No ageing.
  • Corrosions resistant.
  • Unequalled temperature range : -180°C +300°C.
  • Great adaptability/versatility.

Specials on request (material size and number of loops, etc.).

Dimensions are in inches. For reference only

Series

Materials and finishes
(meets RoHS requirements)

AX5

Cable:
stainless steel
Interfaces:
stainless steel
Model

height

h (in)

width

w (in)

weight

(lbs)

-20M
0.59
0.71
None
-20R
0.59
0.71
None
-20S
0.59
0.71
None
-25R
0.71
0.91
None
-25S
0.71
0.91
None
-25M
0.71
0.91
None
-30R
0.83
1.1
None
-30S
0.83
1.1
None
-30M
0.83
1.1
None
-35R
0.91
1.3
None
-35S
0.91
1.3
None
-35M
0.91
1.3
None
Interfaces

fixtures holes D

Bar 2
Bar 1
A
X
5

Serie: AX5

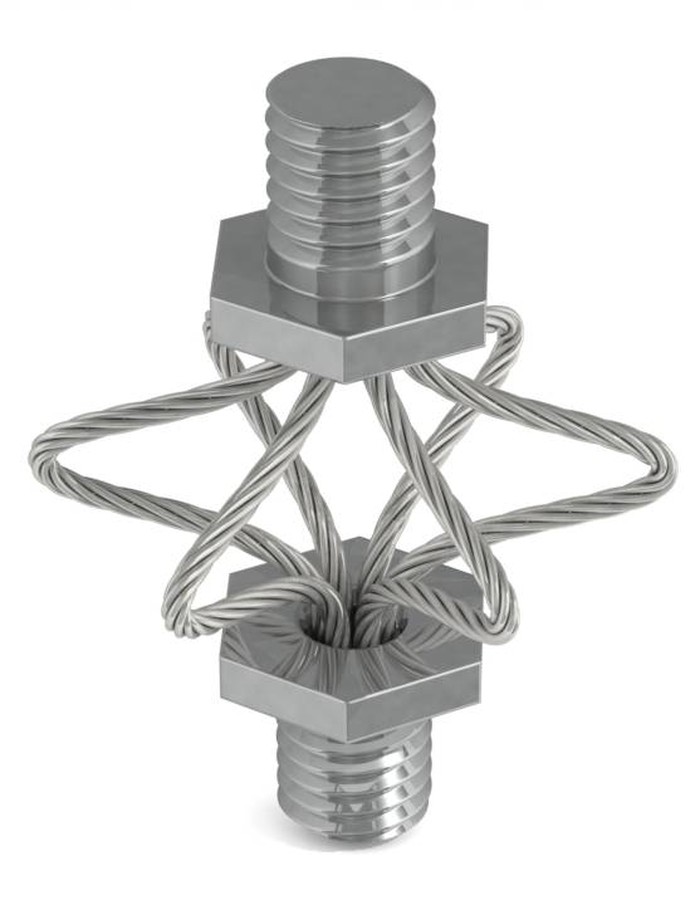

'Axycal' mount from the AX5 series

-
2
0
M

Model: -20M

height: 0.59in
width: 0.71in
weight: Nonelbs

Wire rope isolator

PERFORMANCE DATA
series AX5

Compression and tension

AX5 Series
Model
-20M
-20R
-20S
-25R
-25S
-25M
-30R
-30S
-30M
-35R
-35S
-35M
1. Max Static
F lbf
5.2
6.4
4.3
4.9
3.3
4.0
4.0
2.7
3.2
3.3
2.2
2.7
d in
0.06
0.06
0.06
0.08
0.08
0.08
0.10
0.10
0.10
0.12
0.12
0.12
2. Max Shock
F lbf
16
19
13
15
9.9
12
12
8.0
9.7
9.9
6.6
8.0
d in
0.33
0.33
0.33
0.43
0.43
0.43
0.54
0.54
0.54
0.64
0.64
0.64
3. Max Vibration
2a in
0.04
0.04
0.04
0.05
0.05
0.05
0.06
0.06
0.06
0.07
0.07
0.07
f Hz
10.9
10.6
11.2
9.0
9.6
9.4
8.0
8.6
8.3
7.2
7.8
7.6
1. Max Static
F lbf
5.2
6.4
4.3
4.9
3.3
4.0
4.0
2.7
3.2
3.3
2.2
2.7
d in
0.05
0.05
0.06
0.06
0.07
0.07
0.07
0.09
0.08
0.09
0.10
0.10
2. Max Shock
F lbf
61
69
54
51
40
45
40
31
35
32
25
28
d in
0.27
0.23
0.31
0.28
0.37
0.32
0.32
0.44
0.38
0.37
0.50
0.43
3. Max Vibration
2a in
0.03
0.03
0.03
0.03
0.04
0.04
0.04
0.05
0.04
0.04
0.06
0.05
f Hz
15.0
15.7
14.4
14.1
12.9
13.4
12.9
11.8
12.3
12.0
10.9
11.4

Compression/roll 45° - Tension/roll 45°

AX5 Series
Model
-20M
-20R
-20S
-25R
-25S
-25M
-30R
-30S
-30M
-35R
-35S
-35M
1. Max Static
F lbf
3.9
4.8
3.2
3.7
2.5
3.0
3.0
2.0
2.4
2.5
1.6
2.0
d in
0.09
0.09
0.09
0.11
0.11
0.11
0.14
0.14
0.14
0.17
0.17
0.17
2. Max Shock
F lbf
9.8
12
8.1
9.1
6.2
7.5
7.3
5.0
6.0
6.0
4.1
4.9
d in
0.50
0.50
0.50
0.65
0.65
0.65
0.80
0.80
0.80
0.96
0.96
0.96
3. Max Vibration
2a in
0.05
0.05
0.05
0.07
0.07
0.07
0.09
0.09
0.09
0.11
0.11
0.11
f Hz
9.3
9.0
9.5
7.7
8.2
8.0
6.8
7.3
7.1
6.2
6.6
6.4
1. Max Static
F lbf
3.9
4.8
3.2
3.7
2.5
3.0
3.0
2.0
2.4
2.5
1.6
2.0
d in
0.08
0.08
0.09
0.10
0.11
0.11
0.12
0.14
0.13
0.14
0.16
0.15
2. Max Shock
F lbf
30
34
27
25
20
22
19
15
17
16
12
14
d in
0.31
0.27
0.35
0.32
0.42
0.37
0.37
0.50
0.43
0.42
0.57
0.50
3. Max Vibration
2a in
0.03
0.03
0.04
0.04
0.05
0.04
0.04
0.05
0.05
0.05
0.06
0.05
f Hz
13.6
14.3
13.0
12.8
11.7
12.2
11.8
10.7
11.2
11.0
9.9
10.4

Shear or Roll

AX5 Series
Model
-20M
-20R
-20S
-25R
-25S
-25M
-30R
-30S
-30M
-35R
-35S
-35M
1. Max Static
F lbf
2.6
3.2
2.1
2.5
1.6
2.0
2.0
1.3
1.6
1.7
1.1
1.3
d in
0.12
0.12
0.12
0.15
0.15
0.15
0.19
0.19
0.19
0.22
0.22
0.22
2. Max Shock
F lbf
15
18
12
12
8.5
10
8.9
6.3
7.5
7.0
4.9
5.8
d in
0.36
0.33
0.38
0.41
0.48
0.45
0.50
0.58
0.54
0.58
0.68
0.63
3. Max Vibration
2a in
0.04
0.04
0.04
0.05
0.05
0.05
0.05
0.06
0.06
0.06
0.07
0.07
f Hz
11.5
11.9
11.2
10.5
9.8
10.1
9.4
8.9
9.1
8.7
8.1
8.4
  1. Max static load (F) with corresponding deflection (d)
  2. Max shock load (F) with corresponding deflection (d)
  3. Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
