Wire rope isolator: 'polycal'

DEFINITION
series MP6
  • All metal multidirectional anti-vibration/shock mounts
  • Exceptional reliability and long life
  • High damping
  • No aging
  • Corrosion resistant
  • Unequalled temperature range:- 180°C to 300°C (- 290°F to 570°F)
  • Great adaptability/versatility

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

MP6

Cable:
stainless steel
Retainer bars:
aluminium alloy
Inserts:
stainless steel


Model

height

h (mm)

width

u (mm)

width

v (mm)

weight

(kg)

-90
40
48
60
0,08
-120
50
56
67
0,09
-145
58
60
70
0,10
-195
74
70
82
0,11
Interfaces

fixtures holes D

Bar 1
1 through hole ø5,8 mm (option:Insert M8)
Bar 2
2 through holes ø5,8 mm
M
P
6

Serie: MP6

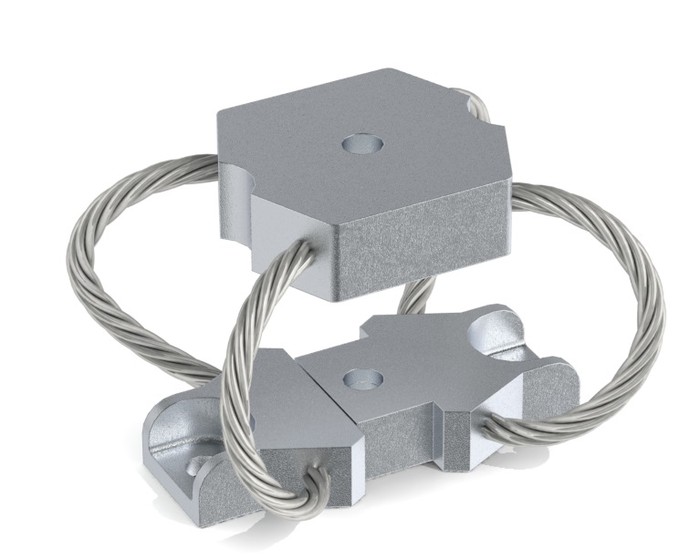

'Polycal' mount from the MP6 series

-
9
0

Model: -90

height: 40mm
width: 48mm
weight: 0,08kg

Wire rope isolator: 'polycal'

PERFORMANCE DATA
series MP6

Compression and tension

MP6 Series
Model
-90
-120
-145
-195
1. Max Static
F daN
11,4
8,9
7,0
4,6
d mm
2,6
4,7
6,0
8,4
2. Max Shock
F daN
34,2
26,8
21,0
13,9
d mm
15
24
31
45
3. Max Vibration
2a mm
1,7
2,7
3,5
5,0
f Hz
10,2
7,6
6,6
5,3
1. Max Static
F daN
11,4
8,9
7,0
4,6
d mm
2,6
3,4
4,2
5,8
2. Max Shock
F daN
140
90,5
67,6
42,5
d mm
13
15
17
23
3. Max Vibration
2a mm
1,5
1,7
2,0
2,6
f Hz
12,4
11,0
9,9
8,5

Compression/roll 45° - Tension/roll 45°

MP6 Series
Model
-90
-120
-145
-195
1. Max Static
F daN
8,5
6,7
5,2
3,5
d mm
3,7
6,5
9,1
14,7
2. Max Shock
F daN
21,6
16,3
12,7
8,3
d mm
22
36
47
68
3. Max Vibration
2a mm
2,5
4,0
5,2
7,6
f Hz
8,7
6,5
5,6
4,4
1. Max Static
F daN
8,5
6,7
5,2
3,5
d mm
3,7
5,4
6,6
9,0
2. Max Shock
F daN
69,2
43,8
32,6
20,4
d mm
15
17
20
26
3. Max Vibration
2a mm
1,7
1,9
2,2
2,9
f Hz
11,2
10,0
9,0
7,8

Shear or Roll

MP6 Series
Model
-90
-120
-145
-195
1. Max Static
F daN
5,7
4,5
3,5
2,3
d mm
5,0
8,7
11,9
18,9
2. Max Shock
F daN
34,8
21,4
15,6
9,6
d mm
17
22
28
39
3. Max Vibration
2a mm
1,9
2,5
3,1
4,4
f Hz
9,6
8,1
7,3
6,2
  1. Max static load (F) with corresponding deflection (d)
  2. Max shock load (F) with corresponding deflection (d)
  3. Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
