Wire rope isolators: 'Helical'

DEFINITION
series CB1800
  • All metal multidirectional anti-vibration/shock mounts
  • Exceptional reliability and long life
  • High damping
  • No aging
  • Corrosion resistant
  • Unequalled temperature range : -180°C to +300°C / -290F to 570 F
  • Great adaptability/versatility

Specials on request

(material size and number of loops, etc.)

Dimensions are in milimeters. For reference only

Series

Materials and finishes
(meets RoHS requirements)

CB1800

Cable:
stainless steel
galvanized available: CBG
Retainer bars:
aluminium alloy/
SurTec
Screws:
alloy steel/ zinc plate
Inserts:
stainless steel

All stainless steel: CBSS

Other materials on request
Model

height

H (mm)

width

W (mm)

weight

(kg)

-12
133
172
11,7
-15
147
187
12,7
-17
163
205
14
-20
182
225
15,3
-30
203
249
17
-40
228
276
18,8
-50
256
308
20,9
Interfaces

fixtures holes D

Bar 2
Bar 1
4 through holes ø17,5mm
4 through holes ø17,5mm counter-sunk 90°
4 inserts M16
4 through holes ø17,5mm
no suffix
not standard
not standard
4 through holes ø17,5mm counter-sunk 90°
CM
CM2
not standard
4 inserts M16
IM
CIM
IM2
C
B
1
8
0
0

Serie: CB1800

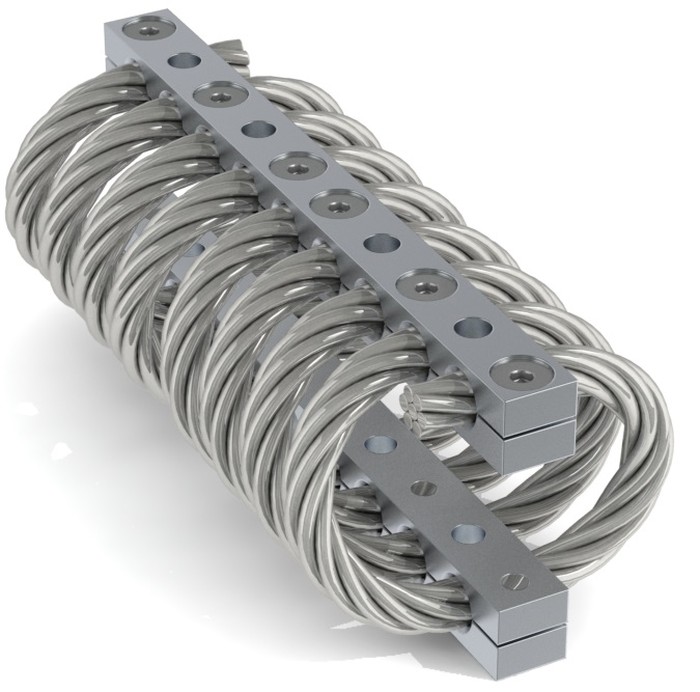

'Helical' mount from the CB1800 series

-
1
2

Model: -12

height: 133mm
width: 172mm
weight: 11,7kg
loops: serie standard is 08 loops

C
I
M

Interface: CIM

4 through holes ø17,5mm counter-sunk 90° in bar 1,
4 inserts M16 in bar 2

1
ISO 9001 ROHS Compliant

Wire rope isolators: 'Helical'

PERFORMANCE DATA
series CB1800

Compression and tension

CB1800 Series
Model
-12
-15
-17
-20
-30
-40
-50
1. Max Static
F daN
1816
1567
1317
1105
908
746
605
d mm
8,1
10,5
13,1
16,3
19,8
23,9
28,6
2. Max Shock
F daN
5449
4703
3953
3316
2724
2238
1815
d mm
44
56
71
88
107
129
154
3. Max Vibration
2a mm
4,8
6,2
7,8
9,7
11,8
14,3
17
f Hz
6,8
6
5,4
4,9
4,4
4
3,7
1. Max Static
F daN
1816
1567
1317
1105
908
746
605
d mm
8,1
9,9
11,9
14
16,6
19,4
22,8
2. Max Shock
F daN
24895
19809
15782
12544
10014
7963
6344
d mm
46
52
60
67
78
88
102
3. Max Vibration
2a mm
5,1
5,8
6,6
7,5
8,6
9,8
11,3
f Hz
7,5
7
6,4
6
5,6
5,2
4,8

Compression/roll 45° - Tension/roll 45°

CB1800 Series
Model
-12
-15
-17
-20
-30
-40
-50
1. Max Static
F daN
1362
1175
988
829
681
559
453
d mm
12,5
16,6
21,3
22,7
28,1
34,7
41,9
2. Max Shock
F daN
3751
3199
2667
2217
1812
1480
1196
d mm
66
85
106
132
160
194
232
3. Max Vibration
2a mm
7,3
9,4
11,7
14,6
17,7
21,4
25,5
f Hz
5,1
4,5
4
3,6
3,3
3
2,8
1. Max Static
F daN
1362
1175
988
829
681
559
453
d mm
9
11,1
14,3
17,8
19,9
25,3
28,7
2. Max Shock
F daN
12587
9977
7927
6282
5007
3974
3163
d mm
53
60
68
77
89
101
117
3. Max Vibration
2a mm
5,9
6,6
7,6
8,5
9,8
11,2
12,9
f Hz
6,1
5,6
5,2
4,9
4,5
4,2
3,9

Shear or Roll

CB1800 Series
Model
-12
-15
-17
-20
-30
-40
-50
1. Max Static
F daN
908
783
658
552
454
373
302
d mm
9,8
12,4
16
20,4
26,5
33,8
38,4
2. Max Shock
F daN
7080
5455
4223
3277
2562
2001
1570
d mm
55
65
78
92
109
128
150
3. Max Vibration
2a mm
6,1
7,2
8,6
10,2
12
14,1
16,6
f Hz
2,1
2
1,8
1,7
1,6
1,5
1,4
  1. Max static load (F) with corresponding deflection (d)
  2. Max shock load (F) with corresponding deflection (d)
  3. Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C
